Tire LASER Engraving Station (otr)
Advanced Final Finishing
Permanent Laser Marking

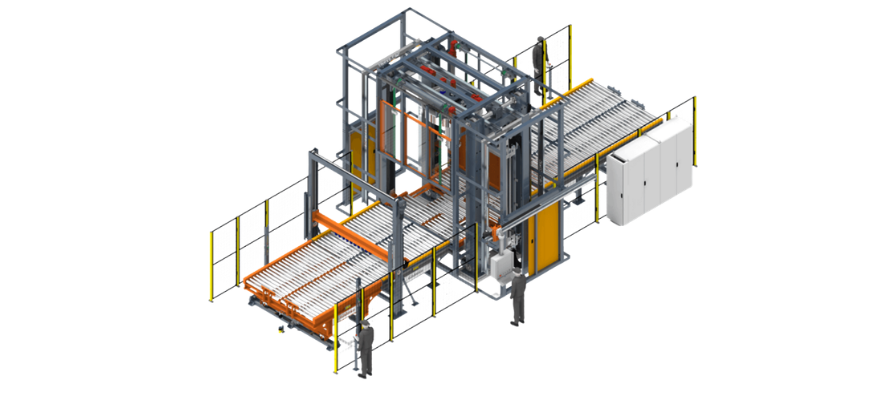

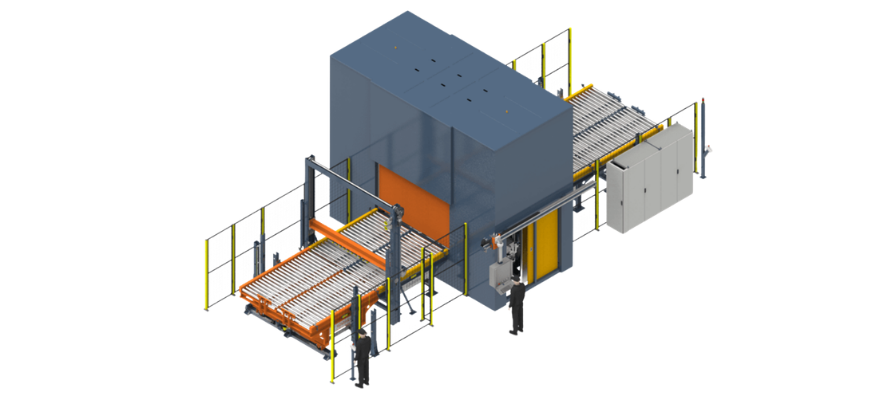

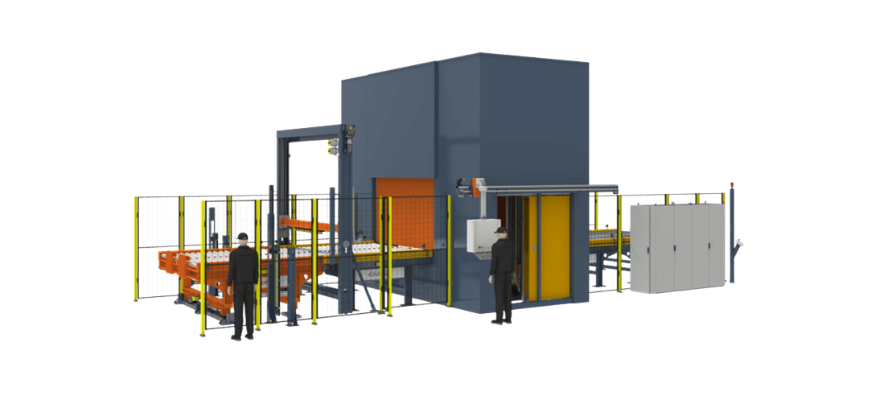

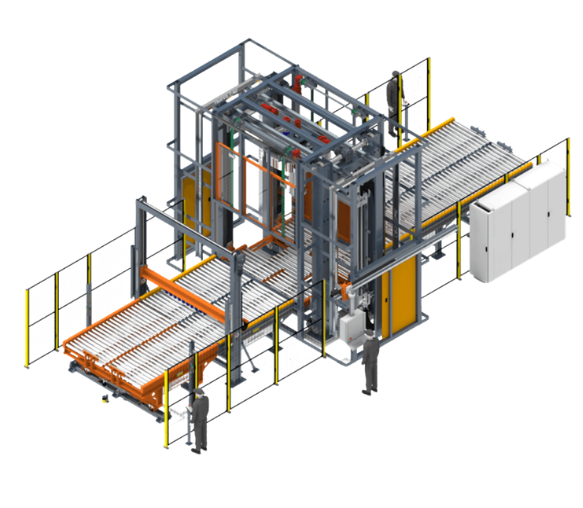

The MAS Tire LASER Engraving Station (OTR) is engineered to create permanent, high-precision markings on Off-The-Road (OTR) tires using advanced laser technology. Designed for large tire applications, the system delivers accurate, durable engraving that enhances product traceability, identification, and manufacturing compliance without physical contact.

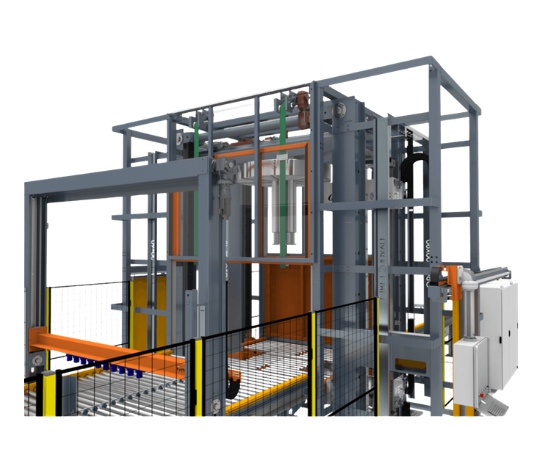

Laser Engraving
Permanent Identification
Precision in Every Detail
Technical Specifications & Performance Details
|
Technical Specifications
|
|
|---|---|
|
Machine type
|
LASER tire marking machine with validation
|
|
Tire type
|
OTR and AGRI
|
|
Rim sizes
|
18″ to 52″
|
|
Tire weight
|
Up to 1500 kg
|
|
Outer diameter
|
2500 mm (max.)
|
|
LASER technology
|
CO2 or fibre, depending on marking requirements
|
|
Engraving position
|
Upper and lower sides
|
|
Vacuum system
|
Full fume filtration system with no need for exhaust ducts
|
|
Validation system
|
Machine vision-assisted system for positioning and marking validation
|
|
Barcode reader
|
Datalogic, Sick or equivalent
|
Engraving Benefits
Built for Lasting Identification
Permanent Engraving
Creates clear, durable markings that remain legible throughout the tire's service life, supporting long-term identification and traceability.
High-Precision Laser Technology
Uses advanced laser engraving to produce accurate markings without mechanical contact, preserving tire surface quality.
Optimized for OTR Tires
Designed to accommodate the size and demands of Off-The-Road tires while integrating efficiently into modern finishing and inspection lines.
