Combo Double Spraying Machine

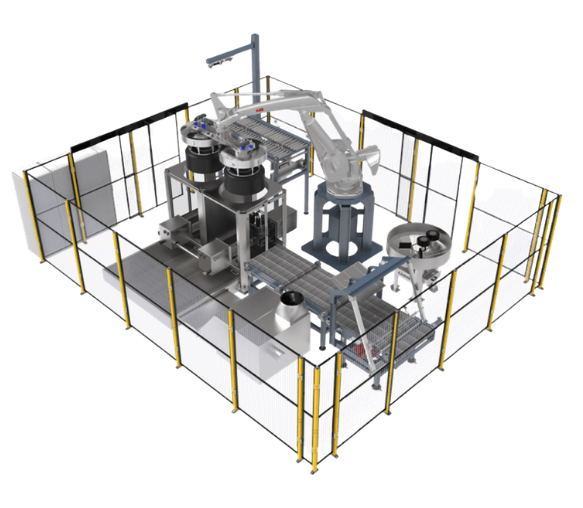

Precision Spraying Solutions
Dual Spray Performance
The MAS Combo Double Spraying Machine is designed to perform dual spraying operations within a single automated system, delivering faster cycle times and consistent coating quality. Built for high-volume tire manufacturing, it ensures synchronized spray application, improved productivity, and reliable performance throughout the production process.

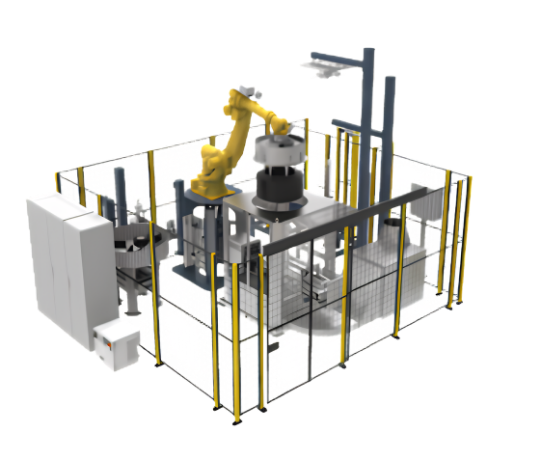

Dual Spray System
Enhanced Productivity
Precision in Every Detail
Technical Specifications & Performance Details
|
Technical Specifications
|
|
|---|---|
|
Machine type
|
combined dual spray machine
|
|
Wheel rim sizes
|
13″ to 24″ (radial)
|
|
Tire weight
|
25 kg (max)
|
|
Outer diameter
|
1050 mm (max)
|
|
Spray technology
|
air-mix gun technology compatible with white/black products
|
|
Spraying capacity
|
4 air-mix guns in each spray booth
|
|
Spray tolerance
|
up to +/- 2g or 7% of the maximum target
|
|
Handling system
|
double gripper (with adjustable gripping force) for 2 tires + robot
|
|
Exhaust system
|
6000 m²/h ventilation capacity
|
|
Tracking technologies
|
barcode scanning on entry
|
|
Work cycle
|
6–9 tires/min
|
Operational Benefits
Double the Performance
Dual Spray Operation
Performs two synchronized spraying processes simultaneously, increasing production capacity without compromising coating quality.
Consistent Results
Advanced automation ensures precise spray timing and uniform coating across every tire, minimizing process variations.
Optimized Throughput
Designed for continuous manufacturing environments, the machine reduces cycle time while maintaining stable and reliable operation.
