Combo (Double Robot) Spraying Machine

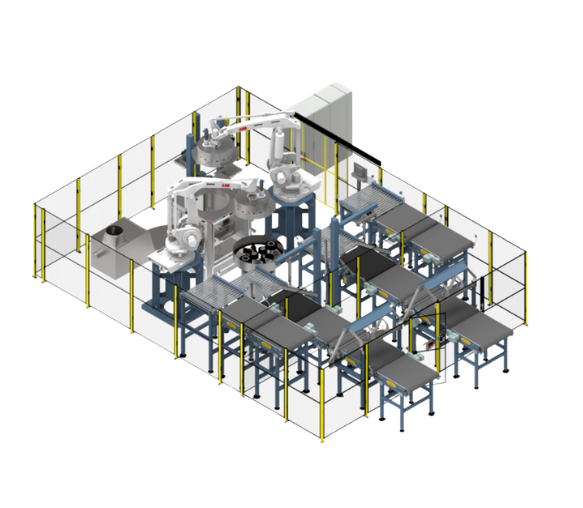

Precision Spraying Solutions
Dual Robot Precision
The MAS Combo (Double Robot) Spraying Machine combines dual robotic technology with intelligent spray automation to deliver exceptional coating accuracy and production efficiency. Designed for high-volume tire manufacturing, the system performs synchronized robotic spraying, ensuring repeatable results, optimized cycle times, and superior process reliability.

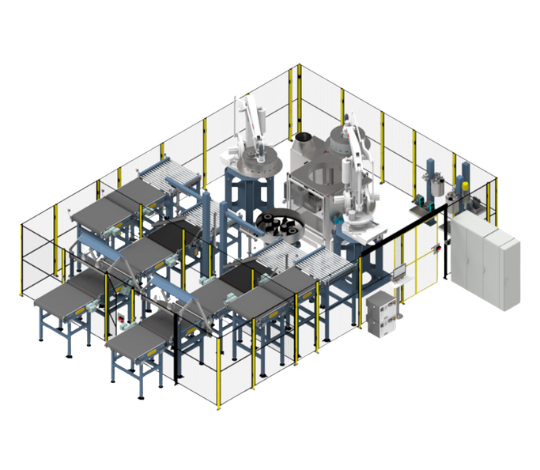

Robotic Automation
Intelligent Spraying
Precision in Every Detail
Technical Specifications & Performance Details
|
Technical Specifications
|
|
|---|---|
|
Machine type
|
combined dual-spray machine
|
|
Rim sizes
|
13“ to 24” (radial)
|
|
Tire weight
|
25 kg (max)
|
|
Outer diameter
|
1050 mm (max)
|
|
Spraying technology
|
air-mix spray gun technology compatible with white/black products
|
|
Spraying capacity
|
4 air-mix guns in each spray booth
|
|
Spray tolerance
|
up to +/- 2g or 7% of the maximum target
|
|
Handling system
|
double gripper (with adjustable gripping force) for 2 tires + robot
|
|
Exhaust system
|
6000 m²/h ventilation capacity
|
|
Tracking technologies
|
barcode scanning at the entrance
|
|
Work cycle
|
6–9 tires/min
|
Automation Benefits
Built for Robotic Excellence
Dual Robot Coordination
Two synchronized robotic arms perform simultaneous spray operations, increasing production capacity while maintaining precise and uniform coating quality.
Exceptional Accuracy
Programmable robotic paths ensure repeatable spray application, reducing process variations and delivering consistent results across every production cycle.
Future-Ready Automation
Designed for Industry 4.0 manufacturing environments, the system integrates seamlessly with automated production lines, providing flexibility, reliability, and long-term operational efficiency.
