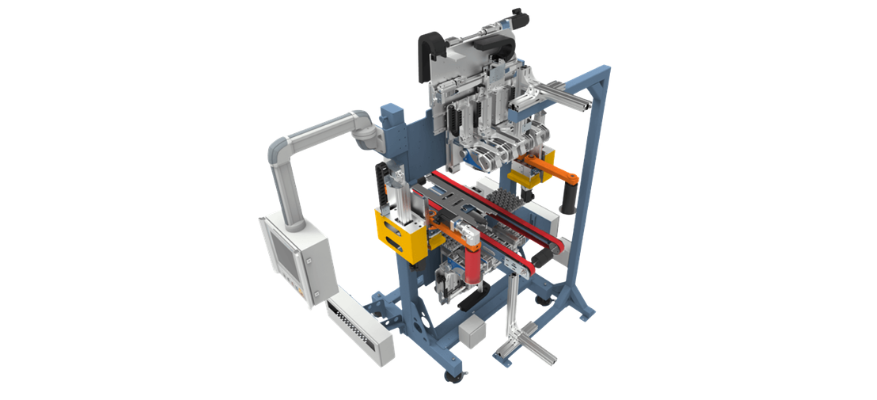

Combo Marking Station

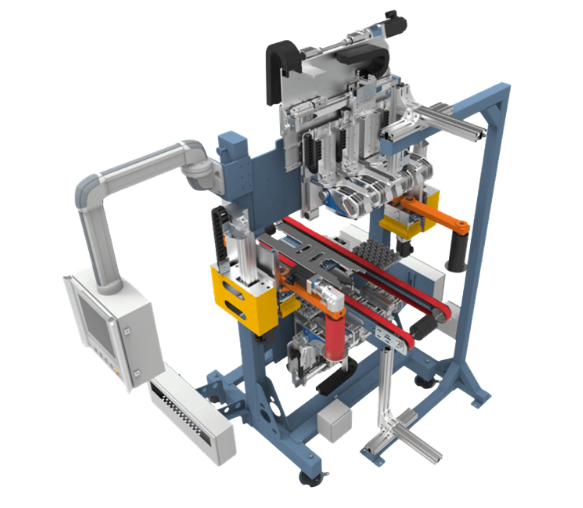

Advanced Final Finishing
Intelligent Marks Verification
The MAS Combo Marking Station is designed to perform multiple tire marking operations within a single automated workstation. By combining accurate marking application with streamlined production flow, the system improves operational efficiency, enhances product identification, and supports consistent manufacturing quality.

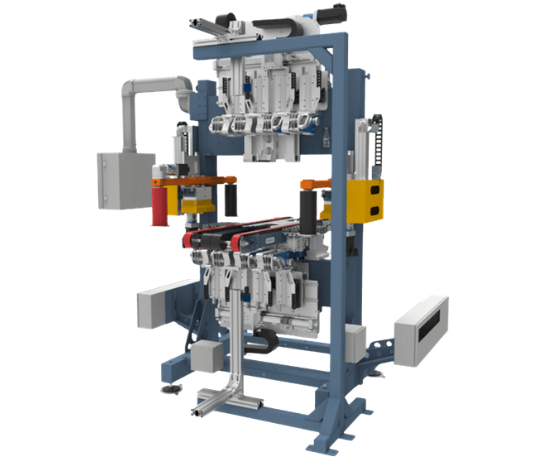

Marks Inspection

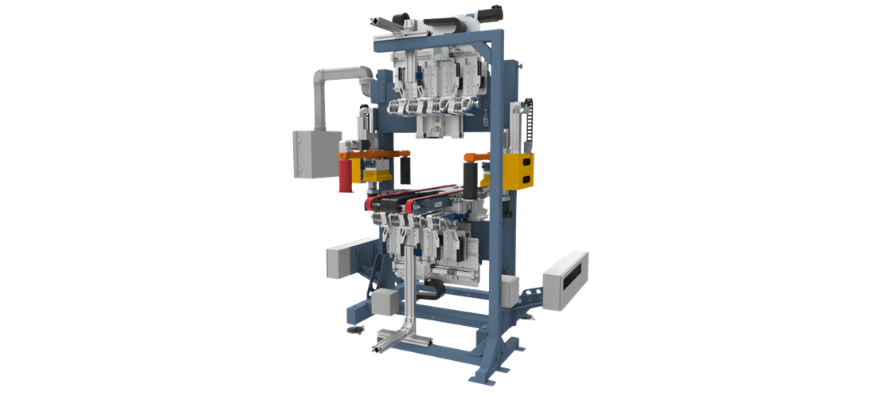

Multi-Function Station
Precision in Every Detail
Technical Specifications & Performance Details
|
Technical Specifications
|
|
|---|---|
|
Tire type
|
Passenger car, commercial vehicle, light goods vehicle, radial 12 to 24″
|
|
Outer diameter of tire
|
400 to 1050 mm
|
|
Tire height
|
135 to 550 mm
|
|
Tire weight
|
≤ 30 kg
|
|
Marking tolerances
|
±2 mm radially and ±2 degrees angularly
|
|
Cycle time
|
12 seconds for the first mark, 6 seconds for each subsequent mark
|
Operational Benefits
Designed for Efficient Marking
Multiple Marking Operations
Combines different marking tasks into a single station, reducing equipment footprint and improving production efficiency.
Consistent Identification
Delivers accurate and repeatable marking application, ensuring every tire is clearly identified throughout the manufacturing process.
Optimized Production Flow
Integrates smoothly into automated finishing lines, minimizing handling time while supporting continuous, high-volume production.
