Spraying Machine (OTR)
Precision Spraying Solutions
Heavy-Duty Spray Automation

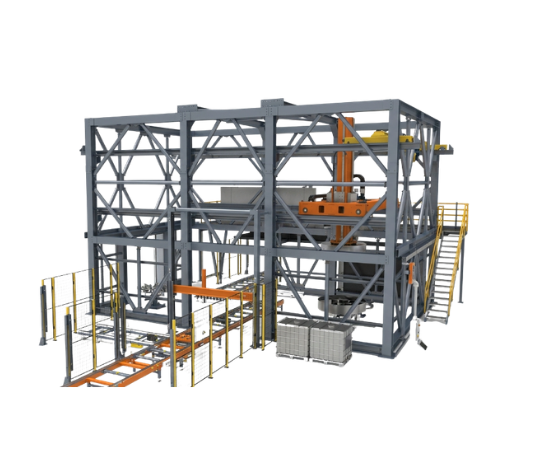

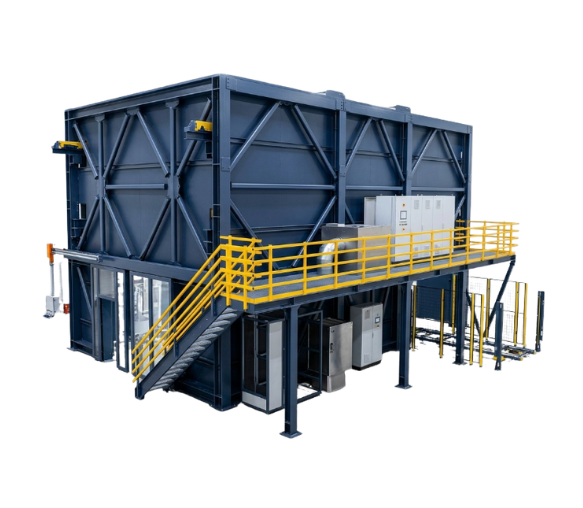

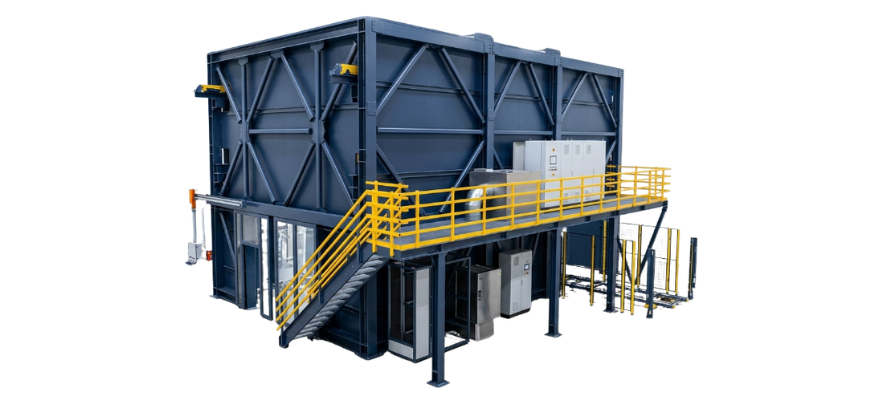

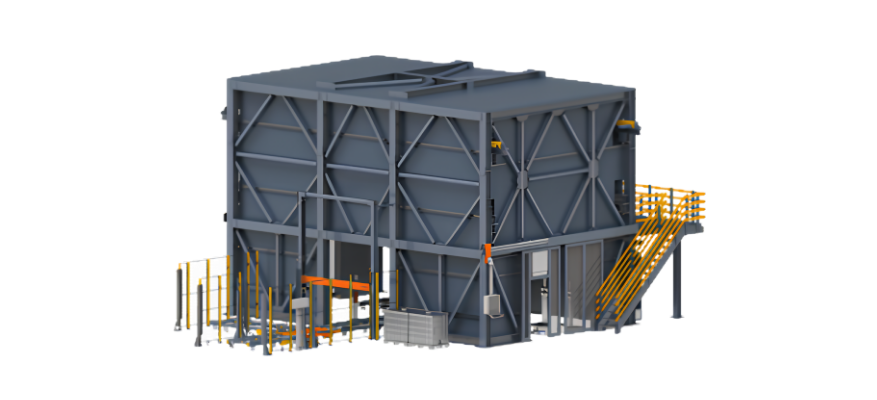

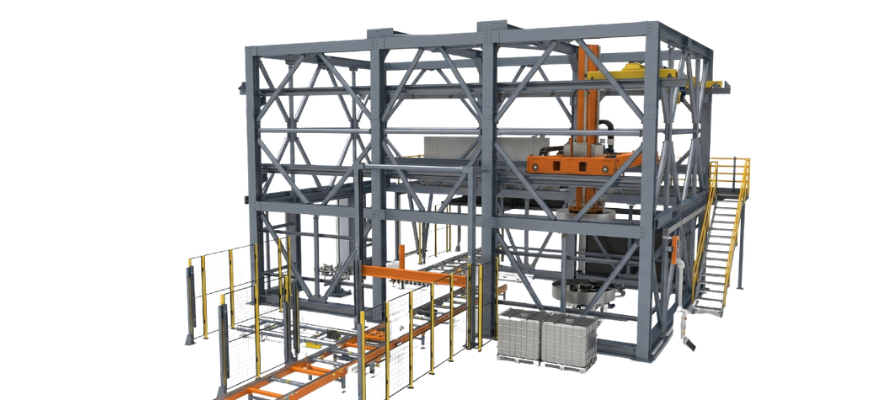

The MAS Spraying Machine (OTR) is designed for the precise and consistent spraying of Off-The-Road (OTR) tires. Engineered to handle large tire dimensions, the machine delivers uniform coating, reliable automation, and high production efficiency, ensuring superior process quality in demanding manufacturing environments.
OTR Spraying
Built for Large Tires
Precision in Every Detail
Technical Specifications & Performance Details
|
Technical Specifications
|
|
|---|---|
|
Layout
|
multiple options
|
|
Green Tire sizes
|
18″ to 52″
|
|
Outer diameter
|
2500 mm (max)
|
|
Tire height
|
250 mm to 1200 mm
|
|
Tire weight
|
2200 kg (max)
|
|
Number of positions
|
5 (collection, spraying, drying, drop and cleaning)
|
|
Filtration
|
high-efficiency solids filter (stainless steel housing)
|
|
Spray quality
|
20 g to 200 g, tolerance up to ± 2 g
|
|
Average cycle time
|
< 220 s
|
|
Tracking technologies
|
barcode or RFID tag
|
Performance Benefits
Engineered for OTR Production
Uniform Coating
Provides consistent spray application across large OTR tires, ensuring reliable coating quality and process accuracy.
Heavy-Duty Performance
Designed to accommodate oversized tires with a robust structure built for continuous industrial operation.
Smart Automation
Advanced control systems optimize spraying cycles, improve production efficiency, and reduce material waste.
